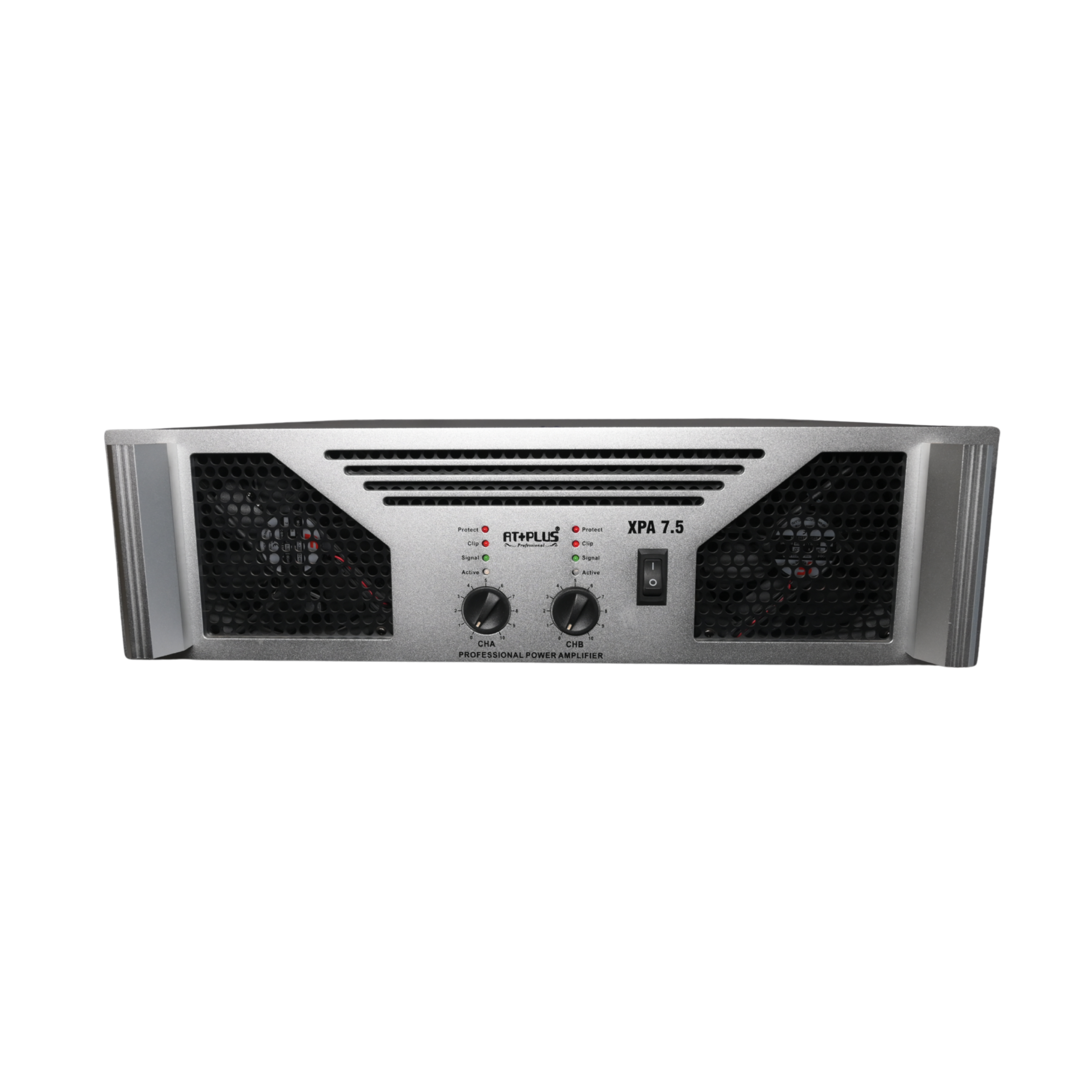

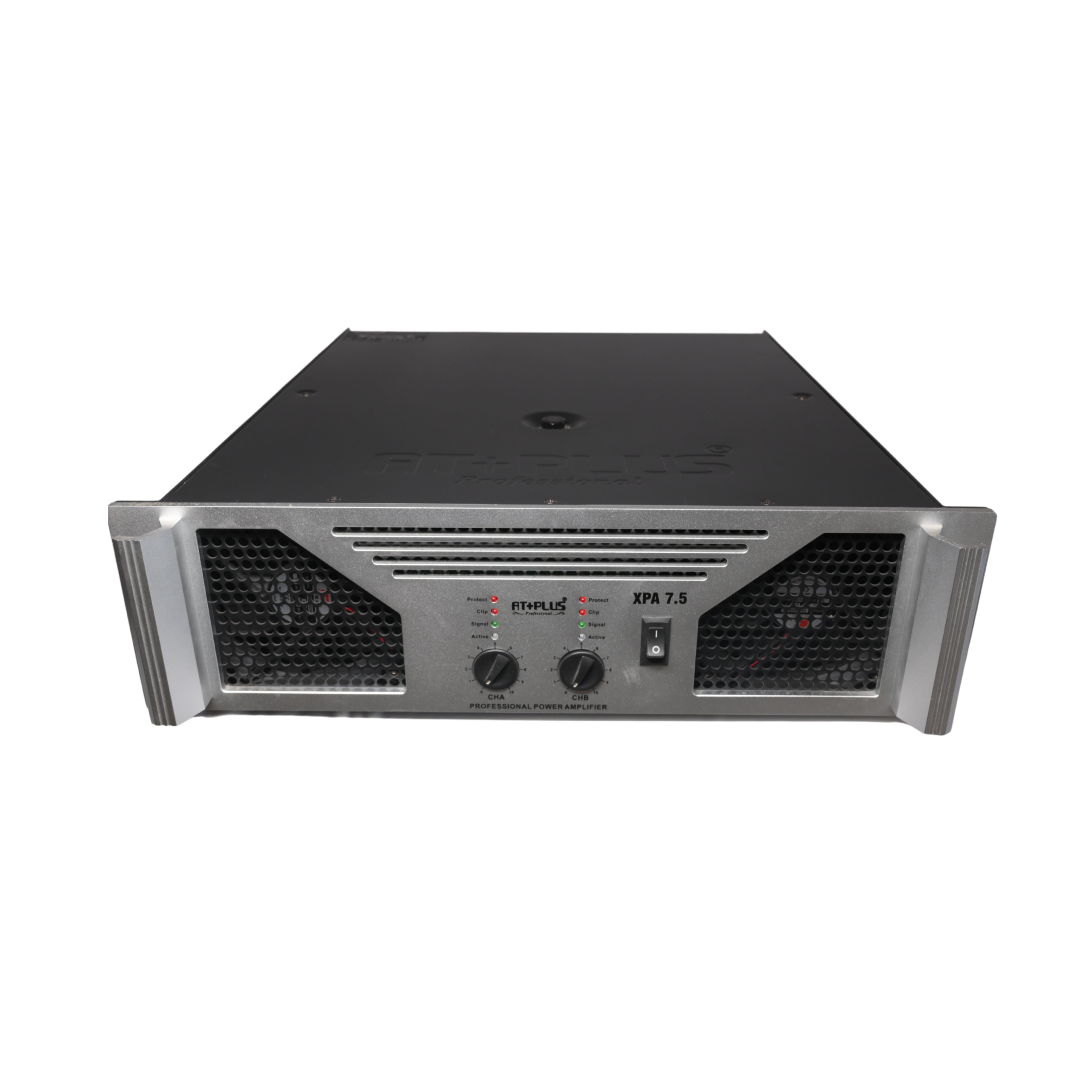

XPA-7.5 (3750w+3750w) 4-FN

The XPA-7.5 is a dual-channel, direct-coupled power amplifier engineered for professional use. With a rated output of 7500 Watts, it sets a new benchmark in high-power amplification, combining reliability with superior sonic performance.

Equipped with selectable input sensitivities, built-in HF protection, and limiter ON/OFF control, the XPA-7.5 ensures both safety and flexibility in operation. Its Class H operation maximizes efficiency, while the 80Hz / 120Hz low-pass filters allow precise control over subwoofer and speaker output.

The amplifier features multiple protection mechanisms, including temperature, DC, RFI, short circuit, and overload protection. Connectivity is versatile, with XLR and 6.3mm stereo phone inputs, and Speakon 4-way plus heavy-duty binding post outputs. Cooling is managed via dual fixed-speed and variable-speed DC fans with temperature sensing, ensuring stable operation even under high load.

Built to withstand the demands of professional audio environments, the XPA-7.5 delivers clean, high-power output with low distortion, wide frequency response, and excellent channel separation, making it ideal for live shows, events, and large-scale installations.

Features & Specifications:

• Power Output: Rated 7500W total; Dual channel direct-coupled

  • Continuous Rated Power:

    • 8Ω: 1600W + 1600W RMS

    • 4Ω: 2600W + 2600W RMS

    • 2Ω: 3800W + 3800W RMS

  • Bridged Output: 8Ω: 5200W RMS, 4Ω: 7600W RMS

• THD + N: < 1.0%

• Frequency Response: 20Hz–20kHz (-1dB)

• Low Pass Filter: 80Hz / 120Hz @ 24dB/octave

• Power Bandwidth (0.5% THD): 20Hz–20kHz

• Input Sensitivity: 0dBu (775mV) & 4dBu (1.23V), selectable

• Input Impedance: 10kΩ Unbalanced, 20kΩ Balanced

• Signal-to-Noise Ratio: > 95dB

• Channel Separation: > 65dB at 1kHz

• Damping Factor (8Ω): > 500

• Slew Rate: 35V/µs

• Protections: Temperature, DC, RFI, Short Circuit, Overload, Built-in Limiter (ON/OFF), AC Magnetic Circuit Protector 20A, ± DC Fuse 30A per channel, Fuse 2×3A (T 3AL)

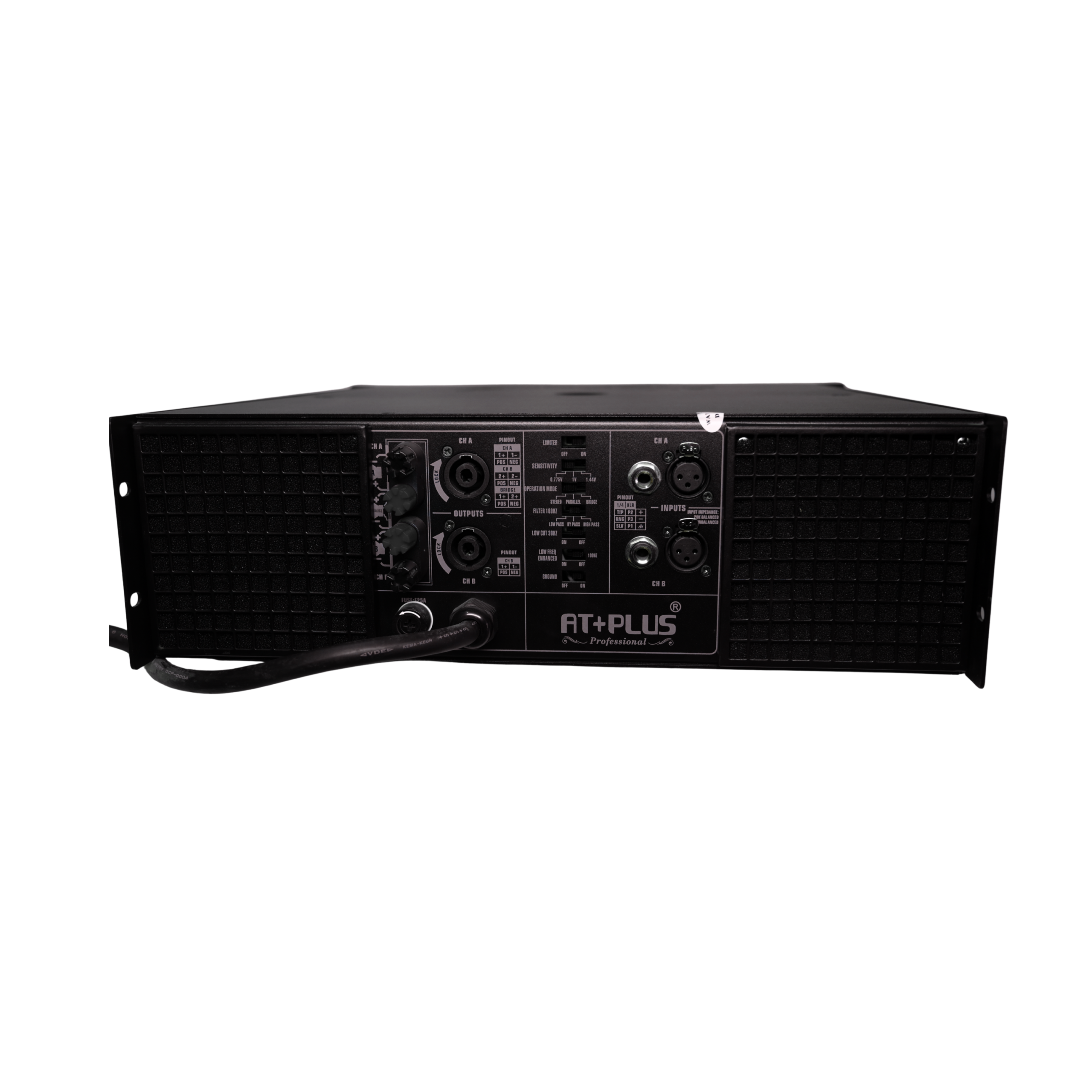

• Input Connectors: 2×XLR, Stereo 6.3mm phone jack

• Output Connectors: Speakon 4-Way, Heavy Duty Binding Post per channel

• Cooling System: 2×Fixed Speed DC Fans, 2×Variable Speed DC Fans with temperature sensing

• Front Panel Controls: 2×41 Step Level Attenuators

• Indicators: Power ON, Signal, Clip, Temperature, Protect (Ch. A & B)

• Power Consumption: 9000VA @ 220–240V ~ 50/60Hz

• Dimensions: W482 × H153 × D605mm

• Weight: 45 kg approx.
