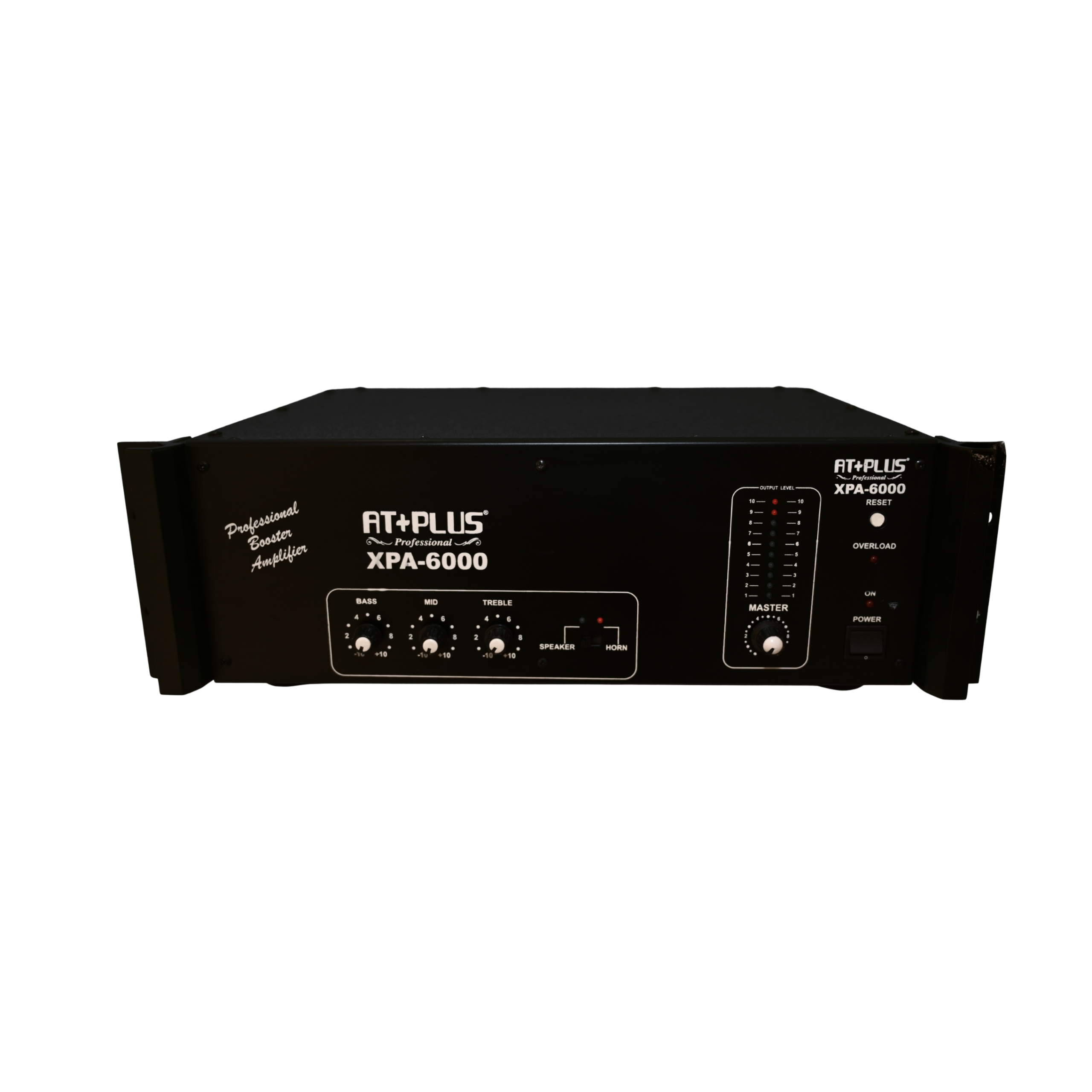

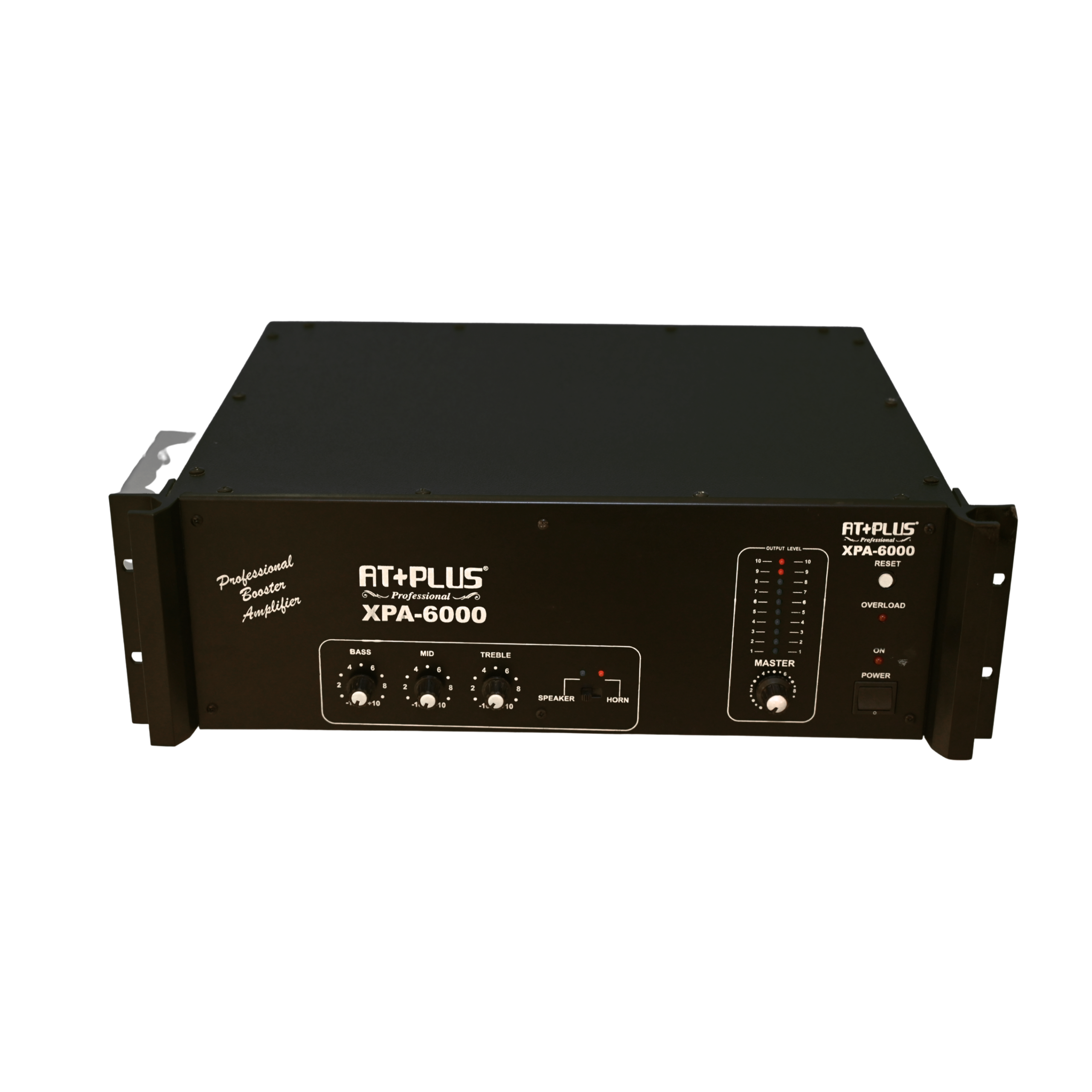

XPA-6000

The XPA-6000 is a high-power professional amplifier designed for clear, consistent, and distortion-free sound in demanding audio environments. With a strong 800W Max / 600W RMS output, it provides rich and balanced audio for PA systems, live events, auditoriums, and DJ performances.

Equipped with Mic, AUX, and Line inputs, the XPA-6000 supports a variety of audio sources such as microphones, mixers, instruments, and media players. The built-in MP3 player allows playback through USB, SD card, and Bluetooth, giving users flexible control over their music and announcements.

This amplifier features a 5-Band Graphic Equalizer and precise Bass, Mid, and Treble controls, allowing users to fine-tune the sound to match their environment. A Tone ON/OFF switch provides further flexibility for natural or enhanced output. The Box Speaker/Driver Unit selector switch ensures safe operation when using driver units by disabling bass boost in that mode.

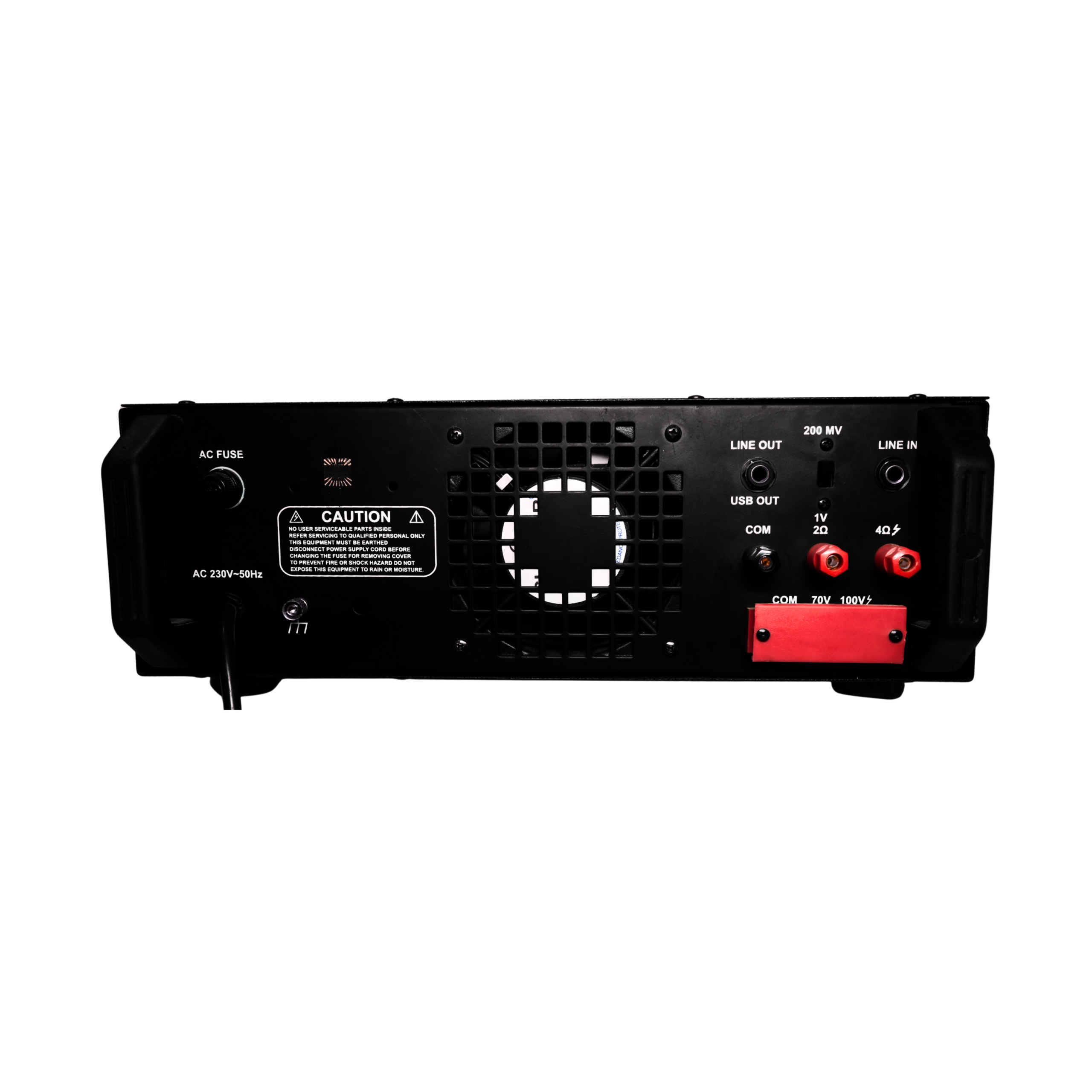

With Line and Preamplifier outputs, resettable circuit protection, and multiple speaker output options (2Ω, 4Ω, 70V & 100V), the XPA-6000 offers professional-grade versatility and safety. Its rugged metal chassis, built-in cooling fan, and AC/DC dual power support ensure stable operation even during extended sessions.

Perfect for schools, religious places, auditoriums, and event organizers, the XPA-6000 Power Amplifier is built to deliver dependable performance every time.

Key Features:

• 800W Max / 600W RMS Power Output

• Clear, Stable, and Distortion-Free Sound

• 6 Mic & 2 AUX Inputs with Adjustable Gain

• Built-in MP3 Player (USB, SD, Bluetooth)

• 5-Band Graphic Equalizer with Tone ON/OFF

• Bass ±14dB @ 100Hz | Mid ±7dB @ 1kHz | Treble ±14dB @ 10kHz

• Box Speaker/Driver Unit Selector Switch

• Line and Preamplifier Outputs for Booster or Recording

• Line Input for External Mixer Connection

• Speaker Outputs: 2Ω, 4Ω, 70V & 100V

• Resettable Circuit Breaker for Overload/Short Protection

• AC 220–240V / 50–60Hz and 12V DC Operation

• Rugged Metal Body with Efficient Cooling Fan

• Ideal for PA Systems, Events, Religious Functions & Large Venues

Specifications:

• Model: XPA-6000

• Power Output: 800W Max / 600W RMS @ 10% THD

• Inputs:

  • MIC: 0.8mV / 4.7kΩ

  • AUX: 100mV / 470kΩ

  • LINE: 1V / 10kΩ

• Outputs:

  • LINE: 1V / 1kΩ

  • SPEAKER: 2Ω, 4Ω, 70V & 100V

• Tone Controls:

  • Bass ±14dB @ 100Hz

  • Mid ±7dB @ 1kHz

  • Treble ±14dB @ 10kHz

• Equalizer: 5-Band Graphic EQ with Tone ON/OFF

• Media Support: USB / SD / Bluetooth

• Protection: Resettable Circuit Breaker

• Cooling: Built-in Fan

• Power Supply: AC 220–240V / 50–60Hz & 12V DC

• Chassis: Heavy-Duty Metal Construction

• Color: Black

• Display: Digital Media Display

• Weight: Approx. 9 kg
