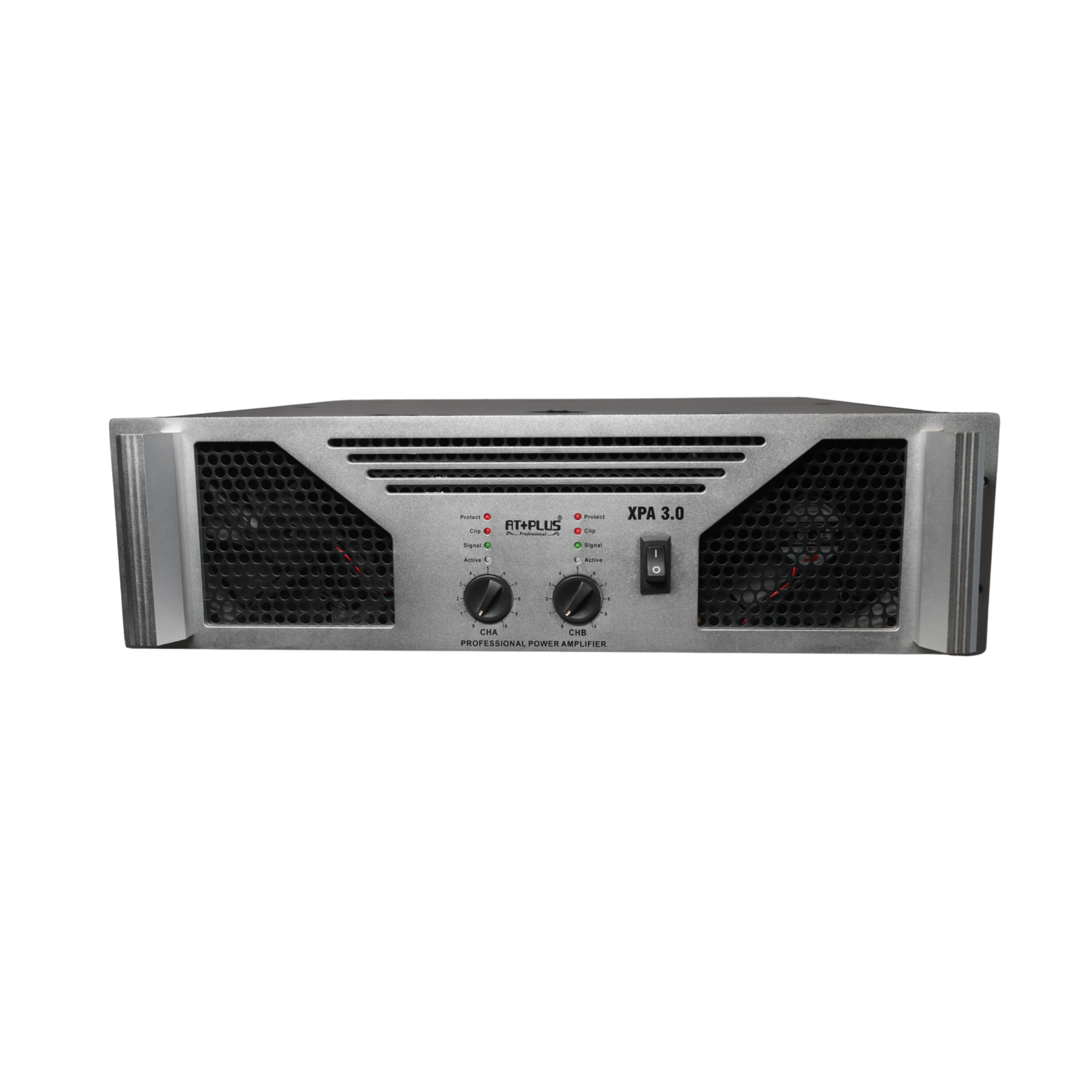

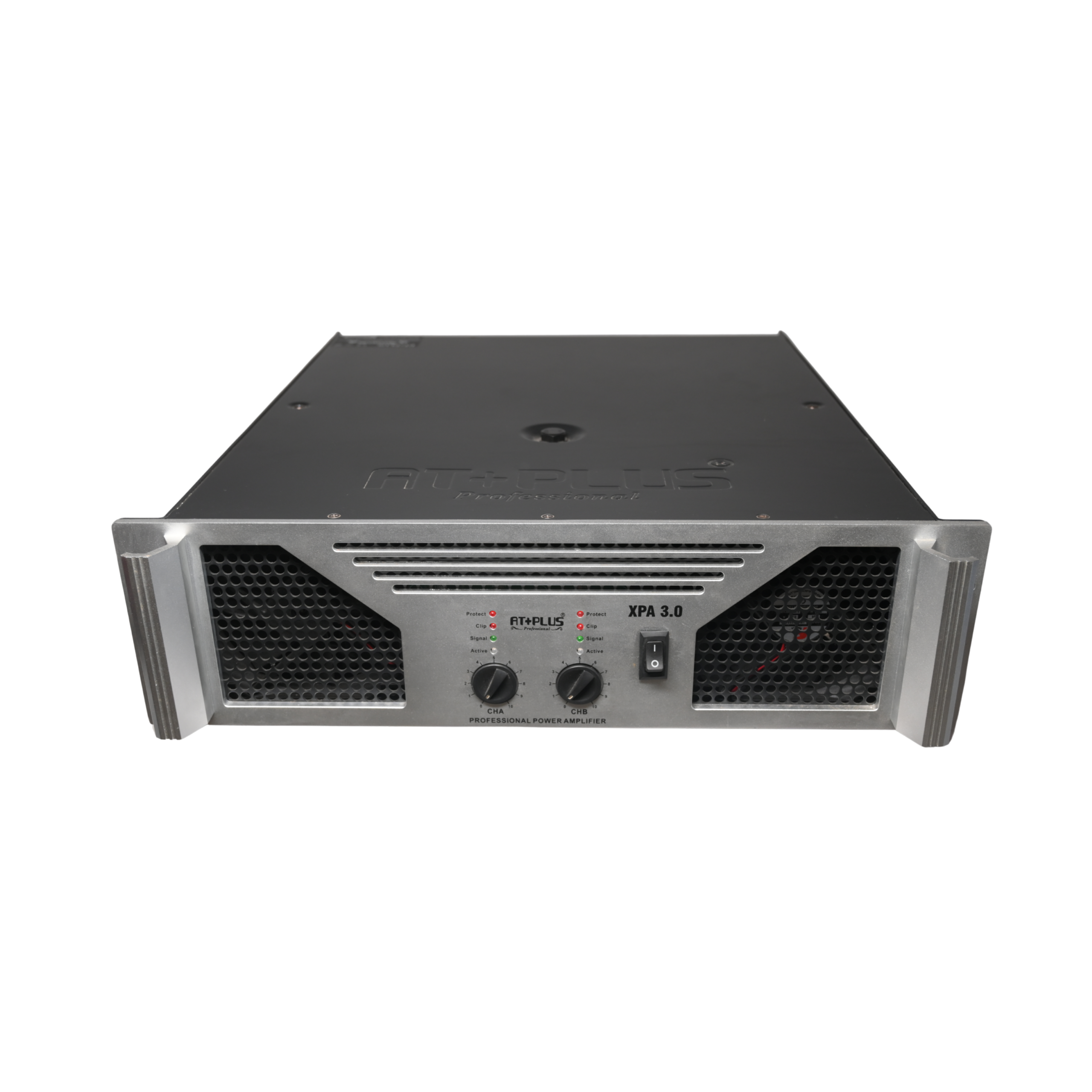

XPA-3.0

The XPA-3.0 Power Amplifier offers superior reliability, high fidelity, and consistent performance under rigorous operating conditions. Engineered with Class H topology, it provides maximum efficiency with minimal heat generation. Each channel supports multiple load impedances, ensuring flexibility for various speaker configurations.

Equipped with selectable input sensitivities and professional-grade connectors, it ensures seamless integration with mixers, processors, and PA systems. Built-in protection circuits safeguard against overheating, DC faults, short circuits, and RF interference. Its durable 3U rack-mount design and efficient cooling system make it ideal for continuous professional use in high-output applications.

Key Features:

• Dual Channel, Direct Coupled Design

• Rated Output: 3000W Total (1500W + 1500W @ 2Ω True RMS)

• Class H Operation for High Efficiency

• High-Fidelity, Low-Distortion Sound

• Two Selectable Input Sensitivities

• Comprehensive Protection: DC, Temperature, RFI, Short Circuit, Soft Start, Overload

• XLR and ¼” TRS Input Connectors per Channel

• Speakon Output Connectors per Channel

• Rugged 3U Metal Chassis for Continuous Professional Use

Specifications:

• Output Power:

  • 2Ω (True RMS, 20Hz–20kHz, 1% THD): 2 × 1500W

  • 2Ω (EIA, 1kHz, 1% THD): 2 × 2750W

  • 4Ω (True RMS, 20Hz–20kHz, 1% THD): 2 × 1100W

  • 4Ω (EIA, 1kHz, 1% THD): 2 × 1580W

  • 8Ω (True RMS, 20Hz–20kHz, 1% THD): 2 × 700W

  • 8Ω (EIA, 1kHz, 1% THD): 2 × 830W

• Bridged Mode Output:

  • 4Ω (True RMS, 20Hz–20kHz, 1% THD): 3000W

  • 4Ω (EIA, 1kHz, 1% THD): 5500W

  • 8Ω (True RMS, 20Hz–20kHz, 1% THD): 2200W

  • 8Ω (EIA, 1kHz, 1% THD): 3160W

• Damping Factor (8Ω): >400:1

• Frequency Response: 20Hz – 20kHz (±0.5dB)

• Protection: Temperature, DC, RFI, Short Circuit, Soft Start, Overload

• Inputs: XLR & ¼” TRS Jack (per channel)

• Outputs: Speakon Connectors (per channel)

• Dimensions (W × D × H): 482 × 455 × 130 mm (3U)

• Net Weight: 30.5 kg
