AT-TZA-5000 (250w+250w)

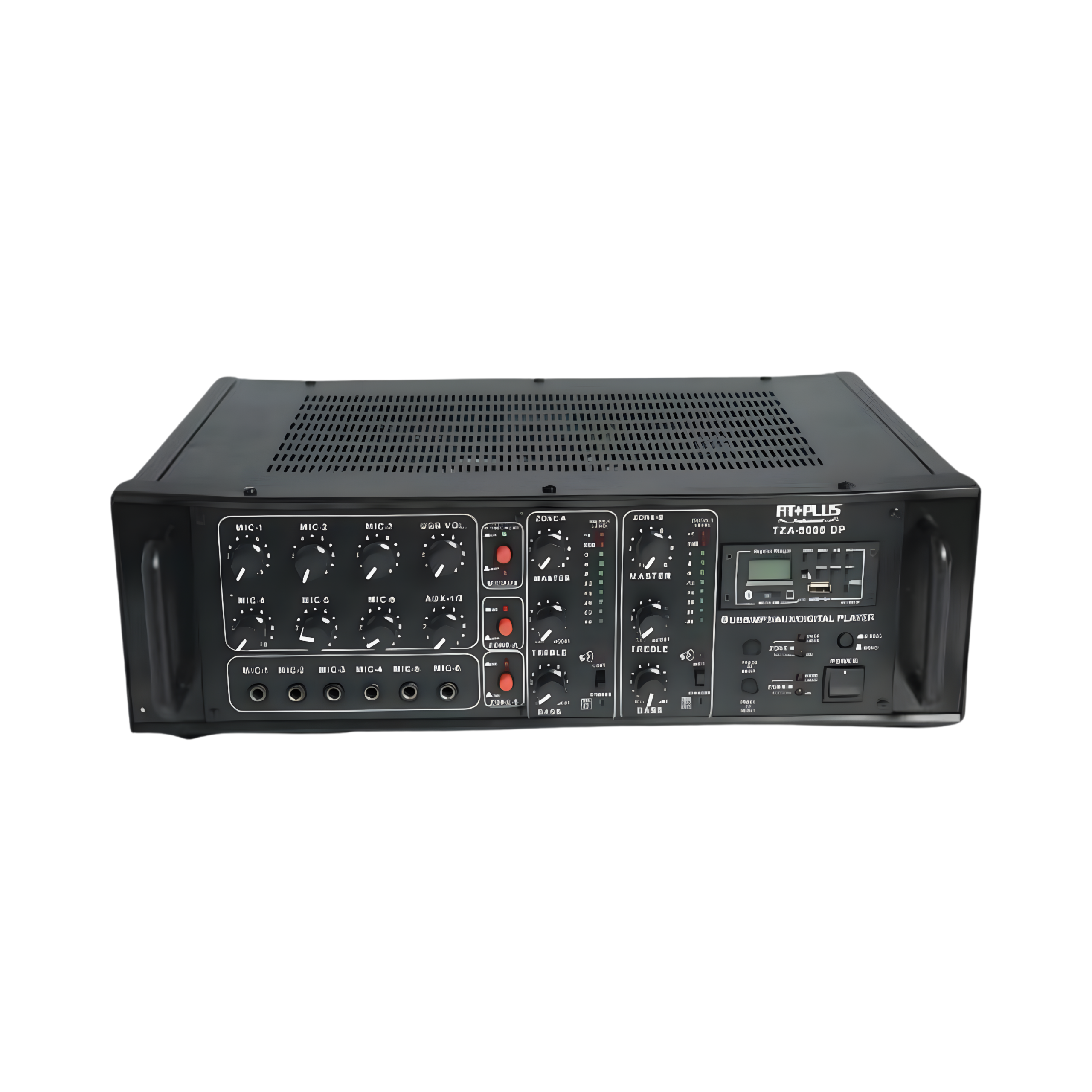

AT-TZA-5000 DP: 500W (250W/250W) Dual-Channel/Dual-Zone PA Amplifier with 6-Input Mixer

The AT-TZA-5000 DP is engineered specifically for complex public address systems that require two separate and controllable audio zones (e.g., controlling a main hall and a lobby independently, or L/R stereo in a large area). This unit acts as two amplifiers in one chassis, providing 250W RMS output to Zone 1 (Master 1) and 250W RMS output to Zone 2 (Master 2).

Key Features:-

• Configuration: 500W Total Power, split into 2 times 250W Independent Channels/Zones.
• Zone Control: Dedicated Master Volume, Bass, and Treble controls for MASTER 1 and MASTER 2.
• Input Mixer: 6 input channels in total: 5 times Mic and 1 times Aux.
• Digital Media: Integrated Digital Player with USB, SD/MMC, and Bluetooth connectivity.
• Dual Output: Each 250W zone supports both Low Impedance (4/8Omega) and 70V/100V Line outputs.
• Power Source: Operates on AC with 36V DC backup input.

Specifications:-

• Power Output (RMS): 2 times 250W (500W Total)
• Frequency Response: 50 Hz to 15,000 Hz (pm 3dB)
• Input Sensitivity (Mic): 0.8mV/4.7kOmega (for 5 inputs)
• Input Sensitivity (Aux): 100mV/470kOmega (for 1 input)
• Tone Controls (Per Channel): Bass (pm 10dB at 100 Hz); Treble (pm 10dB at 10 kHz)
• Speaker Outputs (Per Zone): 4Omega, 8Omega, 70V Line, 100V Line
• Power Supply: 220 – 240V  AC / 36V DC (Battery)
